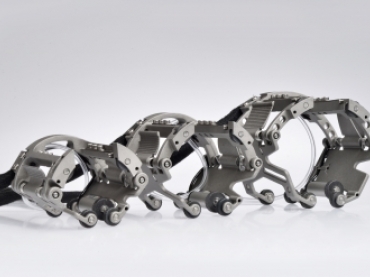

PALM Scanner

The PALM Scanner family inspects pipes of diameters from 1.5” up to 3.5”. The tools are adaptable with various wedges and phased array probes to suit any inspection procedures regardless of tube thickness, material or acceptance criteria.

The PALM Scanners are delivered with a wide selection of accessories in order to make inspection and/or equipment handling even simpler.

 Call Us Now for Enquiry!

Description

[vc_widget_sidebar sidebar_id=”mmpm_menu_widgets_area_1″]

Key Features and Benefits

The PALM Scanner family inspects pipes of diameters from 1.5″ up to 3.5”. The tools are adaptable with various wedges and phased array probes to suit any inspection procedures regardless of tube thickness, material or acceptance criteria.

  • Compact, rigid and lightweight
  • Easy access between gaps as narrow as 12 mm
  • Optimum spring-loaded open clamp system
  • No axial slip
  • Excellent UT signal
  • Reliable measurements
  • Fast and easy translations between measurements
  • Suitable for ferromagnetic and non-ferromagnetic pipes
  • Adapts to various probes and wedges
  • Provides optimum circumferential weld measurement for each tube size
  • Operated by a single person
  • Easy to set up
  • Parallel mounting for inspection from both sides
  • CE compliant (waterproof and rust-free
  • Improved productivity
Applications
  • Weld assessment in small diameter tubes for boilers.

PALM 50

  • Test object min. Ø (OD): 1.5“ – 2.0“ (38mm – 51mm)
  • Weight: ~0.3kg
  • Dimensions (L x B x H): 82 x 71 x 57 mm (max.)
  • Double sided extension (optional)

PALM 64

  • Test object min. Ø (OD) : 2.0“ – 2.5“ (50mm – 65mm)
  • Weight: ~0.3kg
  • Dimensions (L x B x H): 82 x 79 x 71 mm (max.)
  • Double sided extension (optional)

PALM 90

  • Test object min. Ø (OD): 2.5“ – 3.5“ (64mm – 90mm)
  • Weight: ~0.4kg
  • Dimensions (L x B x H): 82 x 100 x 85 mm (max.)
  • Double sided extension (optional)
