Equotip Live Leeb D portable wireless metal hardness tester

The most intuitive portable Leeb hardness tester

Built for Internet of Things (IoT) and Industry 4.0

With the wireless Equotip Live Leeb D impact device and the intuitive Equotip App you are able to measure and collect data in any hardness scale. Global transfer of data is enabled through an auto-sync feature – and reports can be shared via email and other channels. Features include a secure web platform – live.proceq.com – centralized report template and profile management, along with full data traceability, logbooks and continuous cloud backup to prevent data loss. Equotip Live ownership is offered for an initial set-up contribution and a small monthly fee – this preserves business capital while allowing precise cash flow management.

Looking for UCI solutions? Find out more about Equotip Live UCI.

Category:

Description

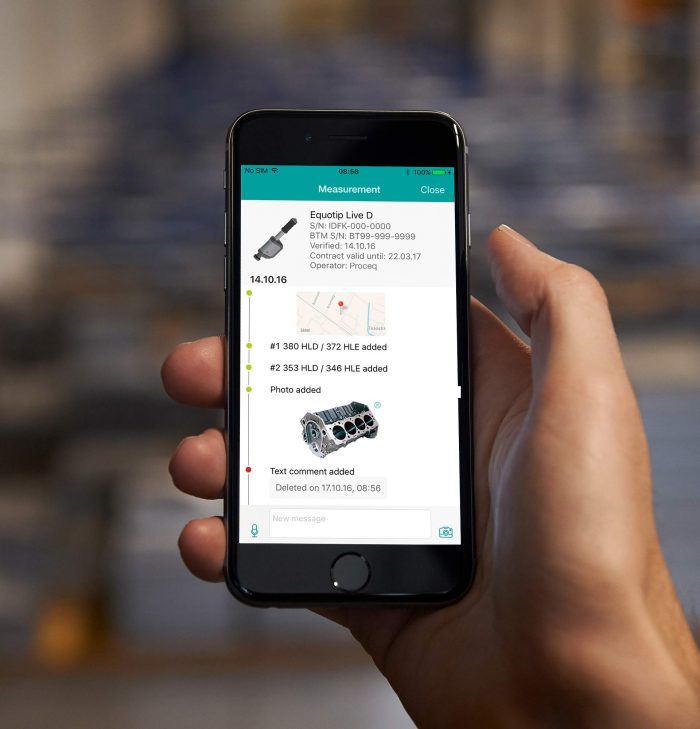

Clean user-interface and logbook for full data traceability

Hassle-free reporting of your portable metal hardness measurements

  • Conduct portable Leeb hardness tests with your Apple Watch
  • Measure, sync and report your metal hardness test results within seconds
  • Share your measurements with your remote team members over our secure cloud
  • Export customized reports as a CSV or PDF file while on the go

Digital High-Tech

  • Mounting ring for easy and secure carrying
  • Innovative loading grip for safe operation
  • Multi-color LED ring with status indication
  • USB connector for charging and firmware updates
  • Removable Bluetooth module
  •  AAA battery compartment
Your Benefits  Wireless impact device and clean user-interface
Easily share your measurements and reports in real-time worldwide
 Logbook for full data traceability and to add media
Native Scale HL
Measuring Range 150 – 950 HL
Measuring Accuracy ± 4 HL (0.5% at 800 HL)
Available Scales HB, HV, HRB, HRC, HS, MPA
Available Probes Leeb D
Average Roughness Ra (µm / µinch) 2 / 80
Minimum Mass (kg / lbs) 0.05 / 0.2
Minimum Thickness (mm / inch) 3 / 0.12



Instrument Firmware
  • iOS app including free updates (visit live.proceq.com for compatibility information)
  • Hotspots with predefined shortcuts
  • Audio output of readings allow to keep mobile in the pocket
  • On-screen guides
  • Automatic compensation for impact direction
  • Verification and calibration information for higher reliability
PC Software Webbrowser-based Equotip Live solution
Display Any iOS device (not included in the delivery)
Memory Memory of iOS device
Connections USB for charging and updates
Standards
  • ASTM A 956
  • ASTM E 140
  • ASTM A 370
  • ISO 16859
  • JB/T 9378
  • GB/T 17394
  • DIN 50156
Guidelines
  • ASME CRTD-91
  • DGZfP Guideline MC 1
  • VDI / VDE Guideline 2616 Paper 1
  • Nordtest Technical Reports 424-1, 424-2, 424-3

Measurement Accessories
  • Equotip Live Leeb D Impact Device Basic (358 00 101)
  • Set of Support Rings (353 03 000)
Verification Tools Equotip Test Block D/DC, ~775 HLD / ~56 HRC, Factory Calibrations by Proceq (357 13 100)
Descriptions Chinese English Français Deutsch Español
Equotip Live Sales Flyer Download
